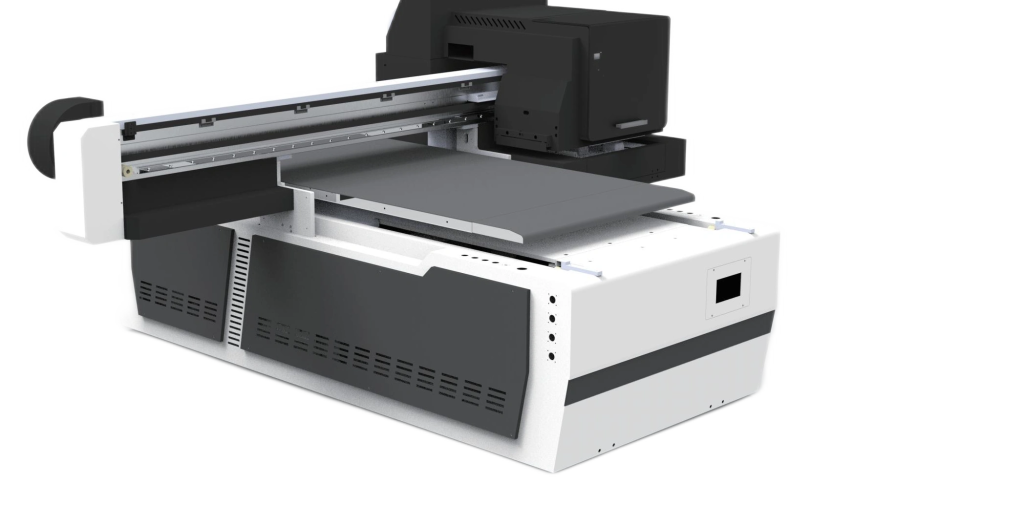

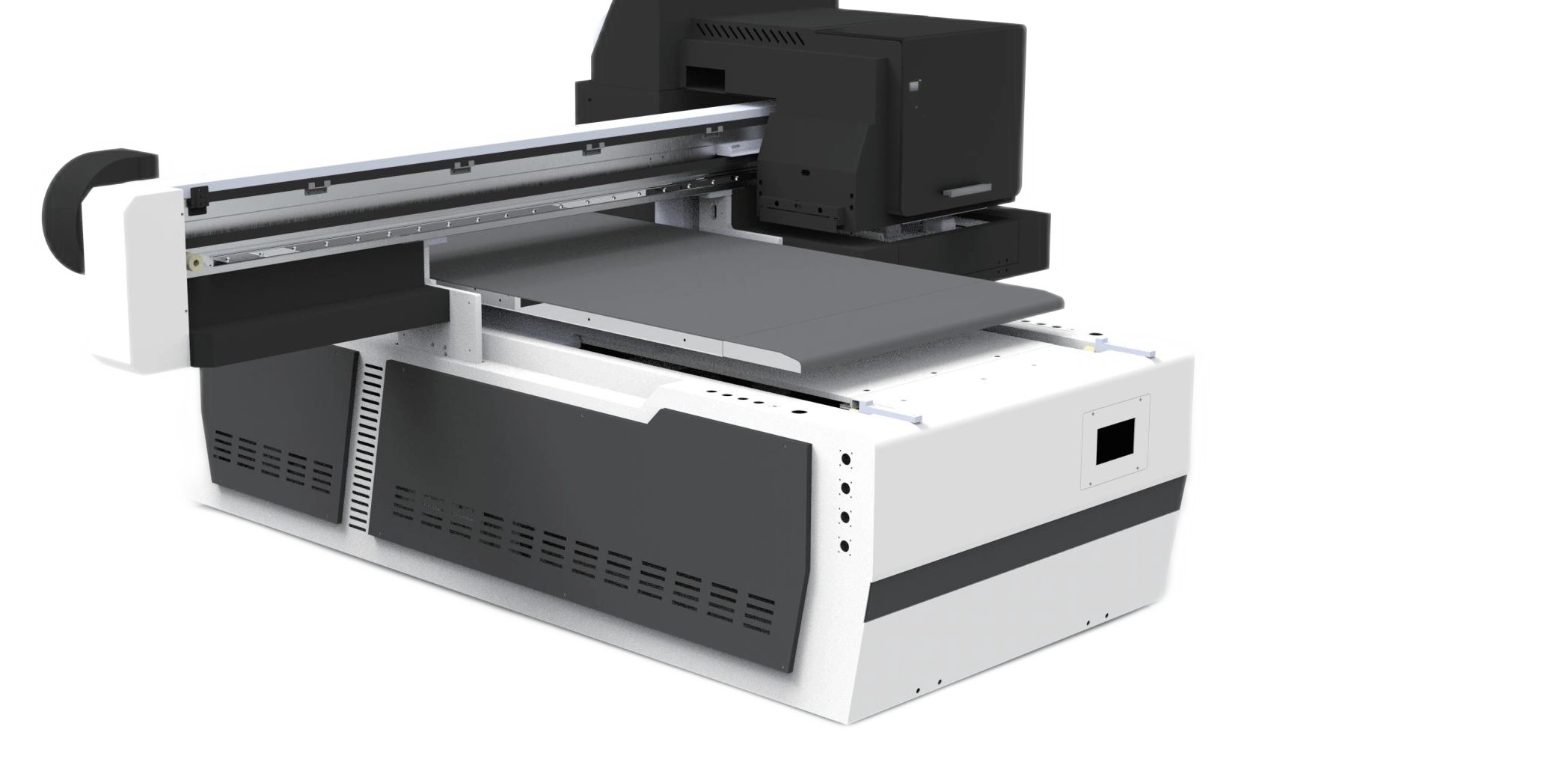

HJD-S05 UV6090 Flat/Cylinder Integrated Machine

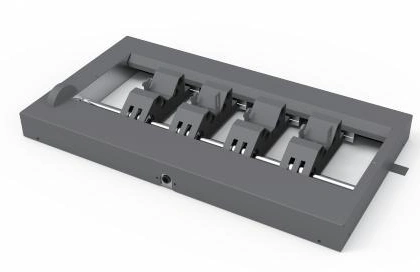

HJD-S05 UV6090 Flat/Cylinder Integrated Machine is documented in the HJD manufacturer brochure. A UV flatbed printer for rigid media with an optional cylinder-printing fixture. The brochure lists glass, signs, PVC, acrylic, leather and plastic, subject to the selected ink and fixture. The documented equipment details include Medium-height alarm; Ink-shortage alarm; Honeycomb suction platform; Printhead-base heating. These details should be checked against the configuration being quoted, rather than assumed to apply to another model in the range. For a technical comparison, the brochure records the following: model: HJD-S05; head options: 3 or 4 × i3200-U1; or 2 × F1080-A1; flat print area: 600 × 900 mm; cylinder fixture: Optional; 30–120 mm diameter; varnish not supported on cylinder fixture; maximum object height: 10 cm; platform adjustable; ink: LED-UV colour, white and varnish; ink-tank volume: 1.5 L; curing: Air-cooled UV-LED. The specification table and this product’s downloadable brochure provide the source context, including any model-dependent alternatives. Points to confirm before selection: Cylinder fixture does not support varnish according to the brochure; do not promise the flatbed finish on cylinders. When enquiring about HJD-S05 UV6090 Flat/Cylinder Integrated Machine, describe the actual job you need to complete, the material or item involved, and the equipment already used in your workshop. Ask the technical team to confirm whether this exact product and its quoted configuration are suitable; a related machine name or a similar photograph does not establish compatibility.
