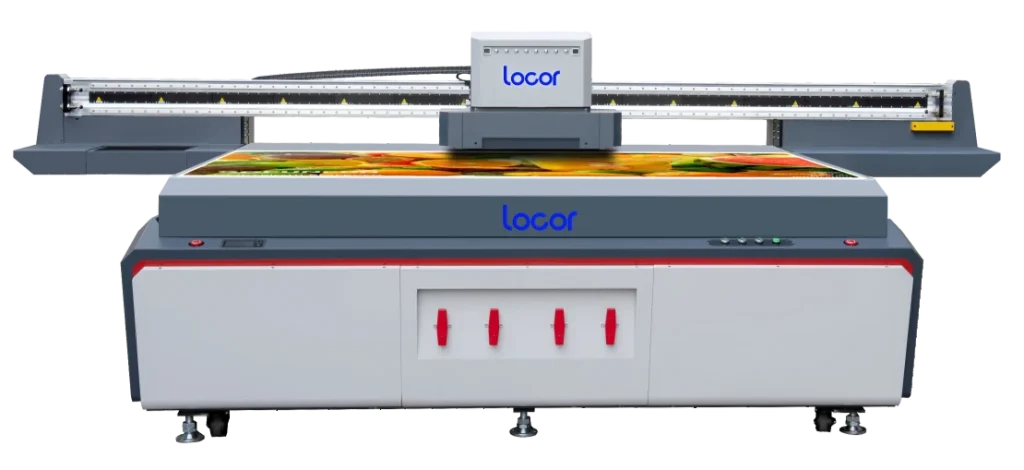

Locor LC-UV2513plus UV flatbed printer
Explore Locor LC-UV2513plus: brochure-backed uv flatbed printer specifications, images and configuration guidance. Request a confirmed quotation.
- Print Head Type: Ricoh Gn5 / Ricoh Gn6 / Konica
- Ink Type: UV ink (VOC-free)
- Printing Width: 2500x1300mm
Printing machine buying guide · Compare UV equipment · Consumable and spare-part compatibility guidance
Request Current Price
Current price, GST, freight and configuration are confirmed in writing.
Get a Detailed Quotation
Specifications, GST, freight, installation and warranty terms will be confirmed in writing.
Check Current Availability
Availability is verified before dispatch or import-on-order planning.
View Delivery Process
Dispatch follows payment, specification confirmation and logistics planning.
View Delivery ProcessInstallation Details
Free on-site installation for eligible machines above ₹1.5 lakh. Engineer travel and stay are customer-paid.
View Installation Details1-Year Dedicated Warranty for Eligible Machines
Printheads and ink-related damage are excluded.
View Warranty PolicyOverview and Applications
Locor LC-UV2513plus is a uv flatbed printer. The brochure specifies a print width or working area of 2500x1300mm. Listed printhead options: Ricoh Gn5 / Ricoh Gn6 / Konica. Printhead quantity: 2-12. Confirm the exact ordered variant, ink configuration and site requirements in the quotation. Brochure printhead options: Ricoh Gn5 / Ricoh Gn6 / Konica.
- Brochure-listed media: Plates (glass, acrylic, aluminum-plastic board, wood, PVC board, foam board, 3C products, organic board, ceramic, foam board, metal board, plastic, fabric, leather, tiles, etc.) Confirm suitability for the intended material by sample testing.
- Ink system: UV ink (VOC-free). The listed alternatives are configuration options, not interchangeable ink systems.
- For the UV media workflow described in the brochure; confirm substrate preparation, curing and fixture requirements for the intended application.
- No production output, delivery date or commercial result is guaranteed by brochure specifications.
Technical Specifications
Printing
| Model | LC-UV2513plus |
|---|
Other brochure specifications
| Media | Plates (glass, acrylic, aluminum-plastic board, wood, PVC board, foam board, 3C products, organic board, ceramic, foam board, metal board, plastic, fabric, leather, tiles, etc.) |
|---|---|
| Print Head Type | Ricoh Gn5 / Ricoh Gn6 / Konica |
| Number of Print Heads | 2-12 |
| Print Head Height | 0-120mm |

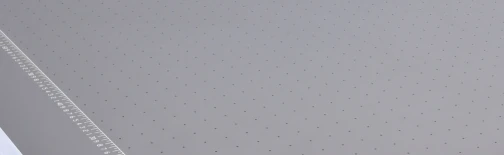

| Vacuum Table | Vacuum adsorption media fixing platform |
| Output Resolution | 635*600dpi/635*900dpi/635*1200dpi |
| RIP Software Configuration | Photoprint, Onyx, etc. (optional) |
| Ink Type | UV ink (VOC-free) |
| File Format | TIFF, JPEG, POSTSCRIPT, EPS, PDF, etc. |
| Ink Color | C/M/Y/K + Lc + Lm + W + V (supports double white and varnish printing) |
| Interface | High-speed USB 3.0 |
| Operating System | Windows 11/10 64-bit |
| Ink Bottle Capacity | 3500ml per color for main ink tanks |
| Power Supply | 200-240VAC, single-phase, 50/60Hz, 32A, 4500W |
| Ink Supply Method | Negative pressure continuous ink supply |
| Machine Volume & Weight | 4500 * 2200 * 1500mm (L * H * W) & 1500kg |
| Printing Width | 2500x1300mm |
| Packaging Volume & Weight | 4730 * 2260 * 1820mm (L * H * W) & 1600kg |
Brochure values should be reconfirmed in the final quotation and specification sheet before purchase.
Package
What is Included and What to Plan Separately
Package eligibility will be confirmed in your quotation. Machines priced above ₹1.5 lakh receive the ProlificGeeks installation and support package.
Included with eligible machine
- Free on-site installation
- Operator training during installation
- Machine operation demonstration
- Recorded installation/execution demonstration
Installation and support package
- Setup guidance
- Instant support during supported service hours
- Three on-site service visits in the first year
- One-year dedicated warranty
Optional/configuration-dependent
- Exact starter consumable quantity
- Optional accessories
- Additional finishing equipment
- DTFShop product links after exact owner-approved mapping
Required separately
- Engineer onward/return travel
- Engineer accommodation and local transport
- Unsupported consumables or damage risk
- Printheads and ink-related damage are warranty exclusions
Delivery and setup
Delivery, Installation and Training
Industrial machine ordering should be confirmed through a formal quotation, specification review and site-readiness check.
- Confirm configuration and requirements.
- Verify availability or import timeline.
- Issue formal quotation and collect applicable advance/payment.
- Arrange dispatch and site-readiness confirmation.
- Engineer installation and operator training.
- Post-installation support and scheduled service.
If the selected machine is in stock, dispatch is arranged promptly after payment, specification confirmation and logistics planning.
If the machine must be imported, the estimated supply period is approximately 45 days, subject to supplier readiness, freight, customs and logistics.
Import-on-order machines generally require a 20–50% advance, with the exact amount stated in the quotation.
Training is conducted during installation for approximately 4–5 operators. Engineer travel, hotel and local transport are customer-paid.
Workspace planning
Plan Your Machine Setup
Final room dimensions depend on the selected configuration and site measurements. Use this checklist before requesting a layout review.
Gallery
Explore the Machine
View the printer, internal components and key construction details.
Brochure and demo
Brochure and Video Availability
Brochure
Download the supplied Locor brochure. Confirm the exact variant and any disputed specifications in your quotation.
Download BrochureVideo demonstration
Related technology videos are available from the ProlificGeeks YouTube channel unless an exact machine video is mapped later.
Watch Machine VideosSample printing
Sample printing ₹500 + shipping ₹100. Total before legally applicable tax: ₹600. Non-refundable.
Warranty and support
Eligible machines receive a one-year dedicated warranty, support access, spare-parts support subject to availability and three on-site service visits in the first year.
- Printheads excluded
- Ink-related damage excluded
- Unsupported consumables may affect warranty eligibility
Consumables required
- Compatible ink: UV ink (VOC-free)
- Compatible media: Plates (glass, acrylic, aluminum-plastic board, wood, PVC board, foam board, 3C products, organic board, ceramic, foam board, metal board, plastic, fabric, leather, tiles, etc.)
- Ask for manufacturer-approved cleaning and maintenance consumables; no exact consumable SKU is assigned.
- Final consumable compatibility must be confirmed against the ordered machine configuration.
Machine FAQs
What is the Locor LC-UV2513plus designed for?
Locor LC-UV2513plus is a uv flatbed printer. The brochure specifies a print width or working area of 2500x1300mm. Listed printhead options: Ricoh Gn5 / Ricoh Gn6 / Konica. Printhead quantity: 2-12. Confirm the exact ordered variant, ink configuration and site requirements in the quotation.
Which media does the brochure list?
Plates (glass, acrylic, aluminum-plastic board, wood, PVC board, foam board, 3C products, organic board, ceramic, foam board, metal board, plastic, fabric, leather, tiles, etc.) Material suitability and preparation must be confirmed for the intended job.
Which printheads and quantity are listed?
Ricoh Gn5 / Ricoh Gn6 / Konica; 2-12. Confirm the ordered configuration; alternatives are not a promise that every option is included.
What print width or working area should I plan for?
2500x1300mm
Which ink and consumables should I order?
Compatible ink: UV ink (VOC-free) Compatible media: Plates (glass, acrylic, aluminum-plastic board, wood, PVC board, foam board, 3C products, organic board, ceramic, foam board, metal board, plastic, fabric, leather, tiles, etc.) Ask for manufacturer-approved cleaning and maintenance consumables; no exact consumable SKU is assigned. Final consumable compatibility must be confirmed against the ordered machine configuration.
What electrical preparation is stated?
200-240VAC, single-phase, 50/60Hz, 32A, 4500W. Confirm load, earthing and the final site requirements with the technical team.
Which RIP software is listed?
Photoprint, Onyx, etc. (optional). Confirm licensing and the supported operating system with the final quotation.
What should be confirmed before ordering?
Confirm the exact variant, final specification sheet, material sample, consumable compatibility, optional equipment, site access and the eligible installation/warranty terms. Brochure values may change; they are not guaranteed production output.
