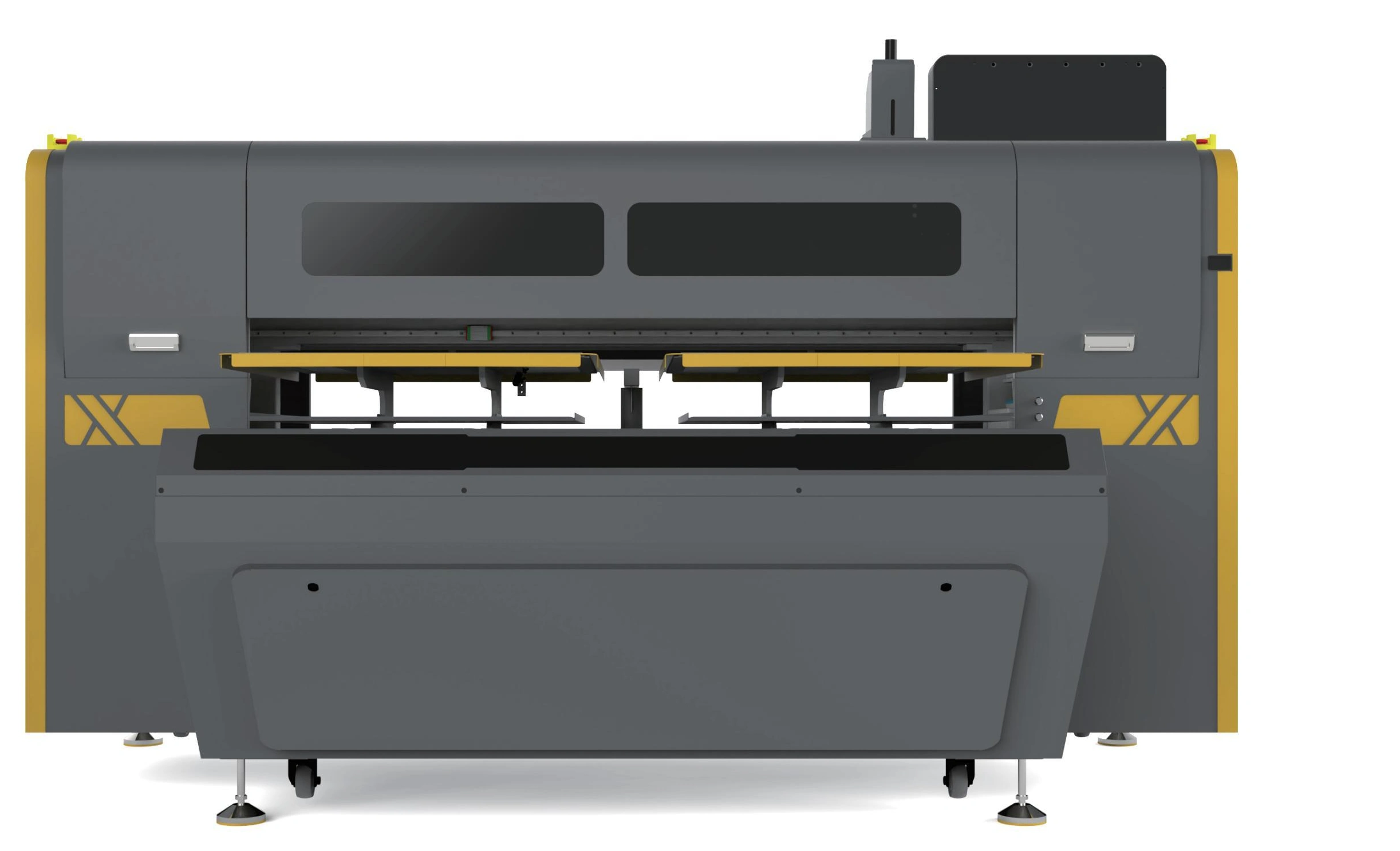

HJD-DP03 White Ink DTG Printer (Double Stations)
A two-station DTG platform offered with Epson or Brother head arrangements. View specifications, machine images and the product brochure; ask for configuration advice.
- Head options: Epson i3200-A1: 4 or 6 heads; Brother KS1680H: 4 or 8 heads
- Print widths: 350 × 450 mm; 490 × 590 mm; 600 × 800 mm
Printing machine buying guide · Compare DTG equipment · Consumable and spare-part compatibility guidance
Request Current Price
Current price, GST, freight and configuration are confirmed in writing.
Get a Detailed Quotation
Specifications, GST, freight, installation and warranty terms will be confirmed in writing.
Check Current Availability
Availability is verified before dispatch or import-on-order planning.
View Delivery Process
Dispatch follows payment, specification confirmation and logistics planning.
View Delivery ProcessInstallation Details
Free on-site installation for eligible machines above ₹1.5 lakh. Engineer travel and stay are customer-paid.
View Installation Details1-Year Dedicated Warranty for Eligible Machines
Printheads and ink-related damage are excluded.
View Warranty PolicyOverview and Applications
HJD-DP03 White Ink DTG Printer (Double Stations) is documented in the HJD manufacturer brochure. A two-station DTG platform offered with Epson or Brother head arrangements. Alternating platens allow garment handling and printing to be coordinated. Specifications must be matched to the chosen printhead and platen option. The documented equipment details include Intelligent platen-cycle printing; Idle printhead cleaning; Integrated lifting ink stack; White-channel processing. These details should be checked against the configuration being quoted, rather than assumed to apply to another model in the range. For a technical comparison, the brochure records the following: model: HJD-DP03 — double stations; head options: Epson i3200-A1: 4 or 6 heads; Brother KS1680H: 4 or 8 heads; fabrics: Cotton-containing garments, linen, denim and sweatshirt fabric; print widths: 350 × 450 mm; 490 × 590 mm; 600 × 800 mm; platen sizes: 360 × 460 mm; 500 × 600 mm; 650 × 850 mm; ink system: Positive and negative pressure ink supply; rip: SPIDER RIP (standard); RIIN T-shirt version; electrical supply: Single-phase 220 V ±5%, 50/60 Hz; confirm configured load. The specification table and this product’s downloadable brochure provide the source context, including any model-dependent alternatives. The illustrated working sequence is: Apply treatment liquid; then Dry; then Press fabric flat; then Print; then Heat-fix; then Inspect the finished garment. Review this sequence when discussing how the equipment would fit into your existing workflow. Points to confirm before selection: Page 12 also contains HJD-DP06 coating machine; excluded from this product PDF.
- Cotton-containing garments, linen, denim and sweatshirt fabric
Technical Specifications
Printing
| Model | HJD-DP03 — double stations |
|---|
Electrical
| Electrical supply | Single-phase 220 V ±5%, 50/60 Hz; confirm configured load |
|---|
Other brochure specifications
| Head options | Epson i3200-A1: 4 or 6 heads; Brother KS1680H: 4 or 8 heads |
|---|---|
| Fabrics | Cotton-containing garments, linen, denim and sweatshirt fabric |
| Print widths | 350 × 450 mm; 490 × 590 mm; 600 × 800 mm |
| Platen sizes | 360 × 460 mm; 500 × 600 mm; 650 × 850 mm |
| Ink system | Positive and negative pressure ink supply |
| RIP | SPIDER RIP (standard); RIIN T-shirt version |
Brochure values should be reconfirmed in the final quotation and specification sheet before purchase.
Features and Components
- Intelligent platen-cycle printing
- Idle printhead cleaning
- Integrated lifting ink stack
- White-channel processing
Working Process
- Apply treatment liquid
- Dry
- Press fabric flat
- Heat-fix
- Inspect the finished garment
Configuration and Source Notes
- Page 12 also contains HJD-DP06 coating machine; excluded from this product PDF.
Package
What is Included and What to Plan Separately
Package eligibility will be confirmed in your quotation. Machines priced above ₹1.5 lakh receive the ProlificGeeks installation and support package.
Included with eligible machine
- Free on-site installation
- Operator training during installation
- Machine operation demonstration
- Recorded installation/execution demonstration
Installation and support package
- Setup guidance
- Instant support during supported service hours
- Three on-site service visits in the first year
- One-year dedicated warranty
Optional/configuration-dependent
- Exact starter consumable quantity
- Optional accessories
- Additional finishing equipment
- DTFShop product links after exact owner-approved mapping
Required separately
- Engineer onward/return travel
- Engineer accommodation and local transport
- Unsupported consumables or damage risk
- Printheads and ink-related damage are warranty exclusions
Delivery and setup
Delivery, Installation and Training
Industrial machine ordering should be confirmed through a formal quotation, specification review and site-readiness check.
- Confirm configuration and requirements.
- Verify availability or import timeline.
- Issue formal quotation and collect applicable advance/payment.
- Arrange dispatch and site-readiness confirmation.
- Engineer installation and operator training.
- Post-installation support and scheduled service.
If the selected machine is in stock, dispatch is arranged promptly after payment, specification confirmation and logistics planning.
If the machine must be imported, the estimated supply period is approximately 45 days, subject to supplier readiness, freight, customs and logistics.
Import-on-order machines generally require a 20–50% advance, with the exact amount stated in the quotation.
Training is conducted during installation for approximately 4–5 operators. Engineer travel, hotel and local transport are customer-paid.
Workspace planning
Plan Your Machine Setup
Final room dimensions depend on the selected configuration and site measurements. Use this checklist before requesting a layout review.
Gallery
Explore the Machine

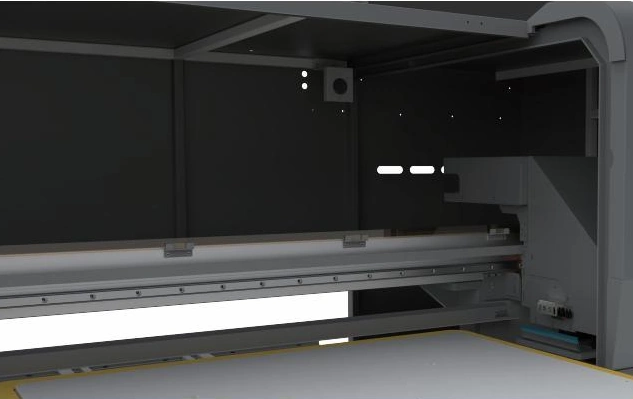

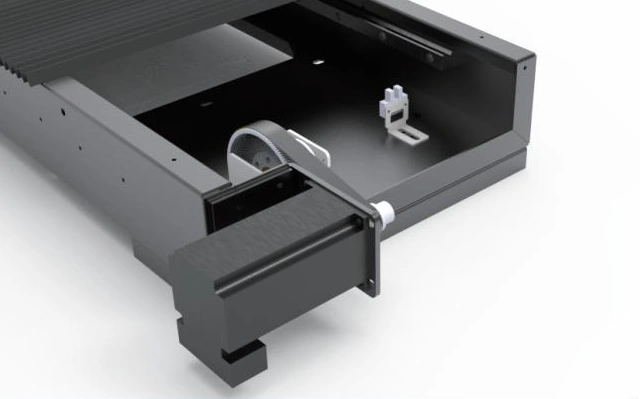

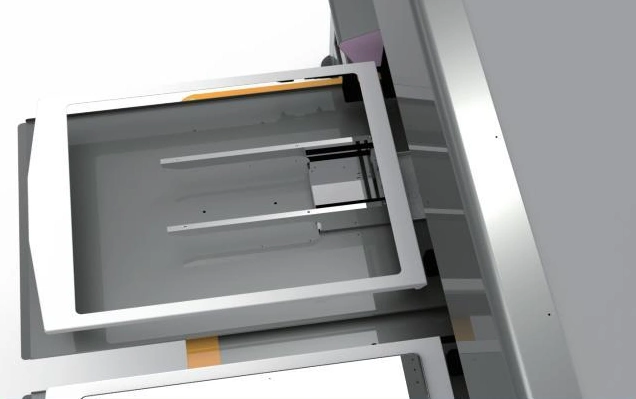

View the printer, internal components and key construction details.
Brochure and demo
Brochure and Video Availability
Brochure
Download the product-specific HJD brochure. Confirm the selected configuration and any source limitations before ordering.
Download BrochureVideo demonstration
Related technology videos are available from the ProlificGeeks YouTube channel unless an exact machine video is mapped later.
Watch Machine VideosSample printing
Sample printing ₹500 + shipping ₹100. Total before legally applicable tax: ₹600. Non-refundable.
Warranty and support
Eligible machines receive a one-year dedicated warranty, support access, spare-parts support subject to availability and three on-site service visits in the first year.
- Printheads excluded
- Ink-related damage excluded
- Unsupported consumables may affect warranty eligibility
Consumables required
- Confirm the consumables and operating supplies for this exact configuration before ordering.
Machine FAQs
Where can I check the original specifications?
Use this page’s product-specific Download Brochure link. It contains the relevant source pages or the isolated model record.
Are the brochure output figures guaranteed?
No. Output depends on the selected configuration, print mode, media and operating conditions. Confirm these requirements before ordering.
