HJD / Textile Printing

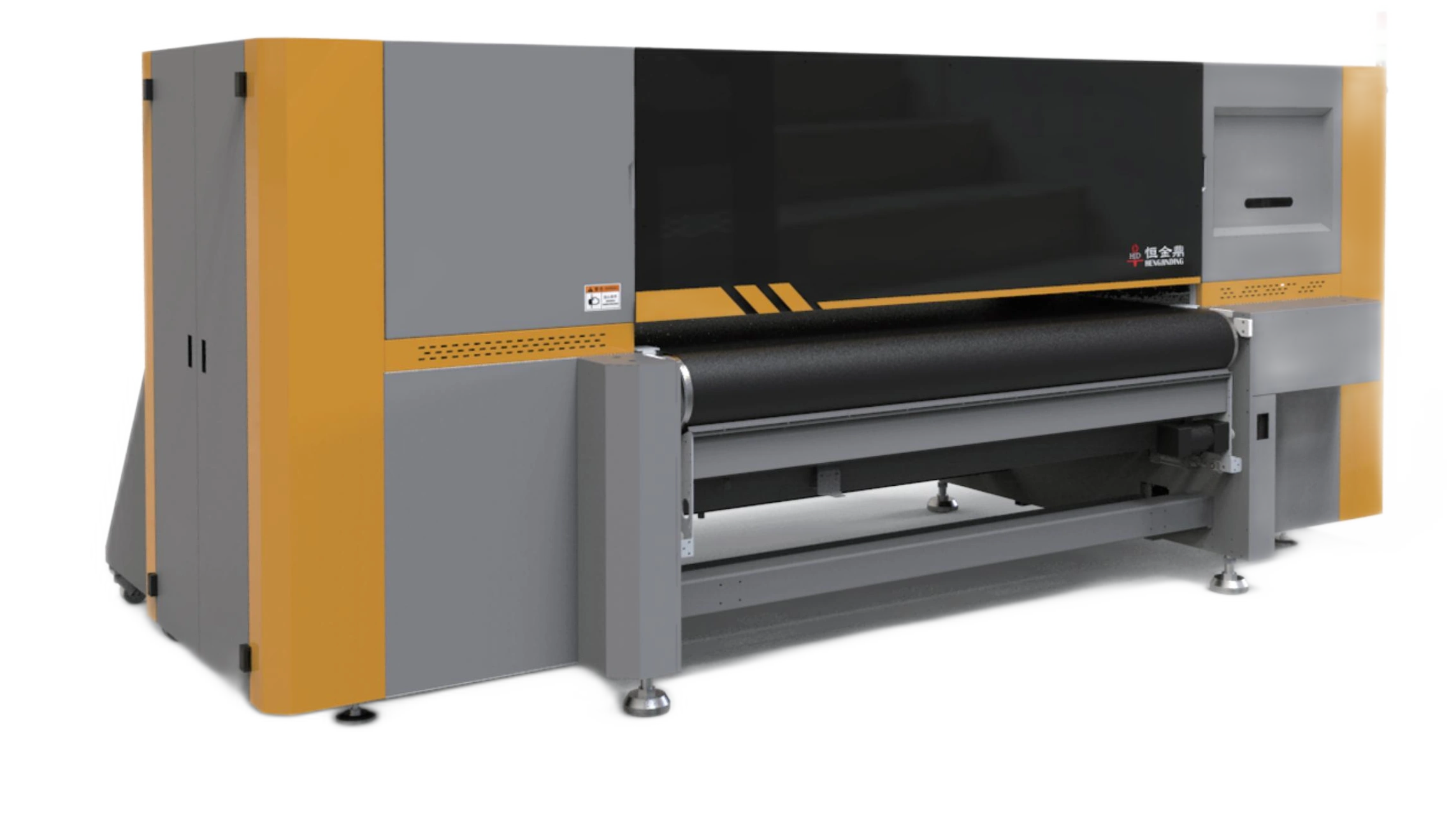

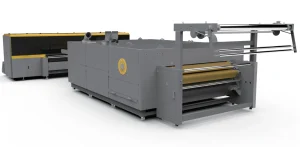

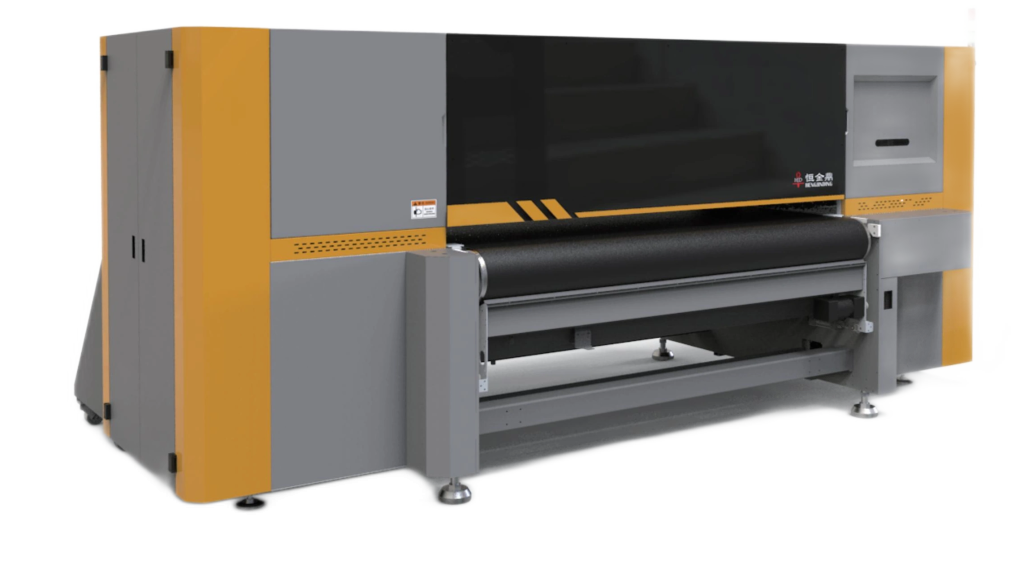

HJD-DP13-1 High Speed Digital Direct Textile Printer

A belt-fed textile printer using Epson industrial-style multihead arrangements. View specifications, machine images and the product brochure; ask for configuration advice.

HJDTextile PrintingA belt-fed textile printer using Epson industrial-style multihead arrangements.
  • Printheads: 16 × Epson i3200-A1; optional 8-head configuration in specification table
  • Print widths: 1810 / 2610 mm
WhatsApp Enquiry
HJD-DP13-1 High Speed Digital Direct Textile Printer

Request Current Price

Current price, GST, freight and configuration are confirmed in writing.

Get a Detailed Quotation

Specifications, GST, freight, installation and warranty terms will be confirmed in writing.

Check Current Availability

Availability is verified before dispatch or import-on-order planning.

View Delivery Process

Dispatch follows payment, specification confirmation and logistics planning.

View Delivery Process

Installation Details

Free on-site installation for eligible machines above ₹1.5 lakh. Engineer travel and stay are customer-paid.

View Installation Details

1-Year Dedicated Warranty for Eligible Machines

Printheads and ink-related damage are excluded.

View Warranty Policy
Page viewed 0%
Buying readiness 0% Start exploring
Next: Check whether this machine suits your application

HJD-DP13-1 High Speed Digital Direct Textile Printer: before you decide

Bring your fabric details, artwork dimensions and finishing requirements. Ask for a sample that follows the complete proposed workflow, so you can assess the result rather than only the printing step.

Bring a job you actually plan to produce

Choose artwork and material that reflect your typical order. Ask which configuration produced the sample, how the operator handled the work and what checks were used to approve the result.

Keep the package details together

Save the product brochure, agreed configuration and quotation. Confirm what is supplied, what you need separately and which delivery, training and service arrangements apply to your order.

For background on the process, read Epson’s digital printing primer. This is general learning material. Use the documentation for your own machine and consumables when choosing settings.

Use the machine buying guide to organise your questions. For HJD-DP13-1 High Speed Digital Direct Textile Printer, contact the team with your sample brief and installation location.

HJD-DP13-1 High Speed Digital Direct Textile Printer: Overview and Applications

HJD-DP13-1 High Speed Digital Direct Textile Printer is one option to discuss for your textile printing setup. Bring your fabric details, artwork dimensions and finishing requirements. Ask for a sample that follows the complete proposed workflow, so you can assess the result rather than only the printing step.

Use the specification table and matching brochure to check the configuration. If the listing covers alternative heads, widths or versions, mark the option you want on the quotation. Ask the team to clarify any ambiguous entry before treating it as a purchase specification.

For HJD-DP13-1 High Speed Digital Direct Textile Printer, bring one representative job to the discussion. Note the artwork dimensions, material and quantities, and agree what a successful sample should demonstrate. Record the consumables and settings used for that sample so you have a useful reference later.

Compare the complete written package, including accessories, software where applicable, delivery and agreed installation or training. Measure the access route and the space needed around the equipment. Refer to the published warranty and support information alongside the terms in your order.

    HJD-DP13-1 High Speed Digital Direct Textile Printer

    Technical Specifications

    Printing
    ModelHJD-DP13-1
    Other brochure specifications
    Printheads16 × Epson i3200-A1; optional 8-head configuration in specification table
    Print widths1810 / 2610 mm
    Ink processesPigment, reactive, acid or high-temperature disperse
    4-colour production360 × 1200 dpi / 2 pass: 180 m²/h
    4-colour fine mode360 × 1800 dpi / 3 pass: 130 m²/h
    8-colour production720 × 900 dpi / 3 pass: 130 m²/h
    8-colour fine mode720 × 1200 dpi / 4 pass: 90 m²/h
    Printhead height3–25 mm adjustable; optimum 3 mm
    Printer power5.5 kW
    Belt dryer power7 / 9 kW by width
    Tunnel dryer power10 / 12 kW by width

    Brochure values should be reconfirmed in the final quotation and specification sheet before purchase.

    Features and Components

    • Magnetic-levitation X-axis drive
    • Fabric-height sensing
    • Automatic belt cleaning
    • Ink-shortage alarm

    Configuration and Source Notes

    • Page 32 marketing text lists 8/12/16/24 heads while page 33 table specifies 16 (optional 8); confirm additional configurations.

    Package

    What is Included and What to Plan Separately

    Package eligibility will be confirmed in your quotation. Machines priced above ₹1.5 lakh receive the ProlificGeeks installation and support package.

    Included with eligible machine

    • Free on-site installation
    • Operator training during installation
    • Machine operation demonstration
    • Recorded installation/execution demonstration

    Installation and support package

    • Setup guidance
    • Instant support during supported service hours
    • Three on-site service visits in the first year
    • One-year dedicated warranty

    Optional/configuration-dependent

    • Exact starter consumable quantity
    • Optional accessories
    • Additional finishing equipment
    • Compatible consumable and accessory options

    Required separately

    • Engineer onward/return travel
    • Engineer accommodation and local transport
    • Unsupported consumables or damage risk
    • Printheads and ink-related damage are warranty exclusions

    Delivery and setup

    Delivery, Installation and Training

    Industrial machine ordering should be confirmed through a formal quotation, specification review and site-readiness check.

    1. Confirm configuration and requirements.
    2. Verify availability or import timeline.
    3. Issue formal quotation and collect applicable advance/payment.
    4. Arrange dispatch and site-readiness confirmation.
    5. Engineer installation and operator training.
    6. Post-installation support and scheduled service.

    If the selected machine is in stock, dispatch is arranged promptly after payment, specification confirmation and logistics planning.

    If the machine must be imported, the estimated supply period is approximately 45 days, subject to supplier readiness, freight, customs and logistics.

    Import-on-order machines generally require a 20–50% advance, with the exact amount stated in the quotation.

    Training is conducted during installation for approximately 4–5 operators. Engineer travel, hotel and local transport are customer-paid.

    Browse Catalogue

    Workspace planning

    Plan Your Machine Setup

    Final room dimensions depend on the selected configuration and site measurements. Use this checklist before requesting a layout review.

    Room length and widthCeiling height and door widthFloor and lift availabilityElectrical supply and stabilizer/UPSVentilation or exhaust requirementComputer workstationMedia and consumable storageOperator clearance and input/output area

    Warranty and support

    Eligible machines receive a one-year dedicated warranty, support access, spare-parts support subject to availability and three on-site service visits in the first year.

    • Printheads excluded
    • Ink-related damage excluded
    • Unsupported consumables may affect warranty eligibility
    Read Full Warranty Policy

    Consumables required

    • Ink processes: Pigment, reactive, acid or high-temperature disperse

    Machine FAQs

    Where can I check the original specifications?

    Use the product-specific Download Brochure link on this page and confirm the selected configuration in your quotation.

    Are the brochure output figures guaranteed?

    No. Output depends on the selected configuration, print mode, media and operating conditions. Confirm these requirements before ordering.
