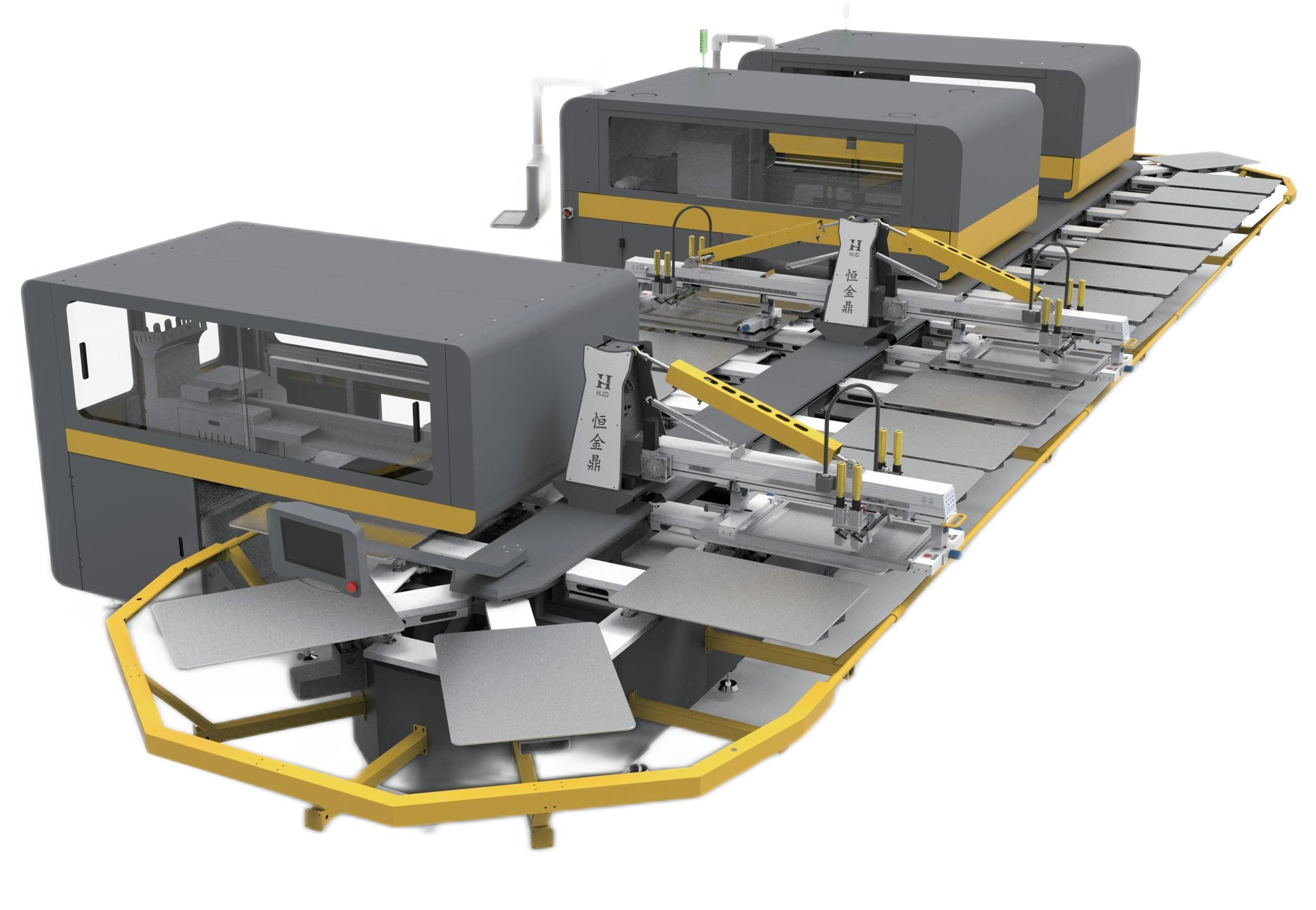

Oval Screen Printing Machine + Hybrid DTG Printer (Industrial Printhead)

This combined system brings oval screen printing and industrial-head digital garment printing into one production line. View specifications, machine images and the product brochure; ask for configuration advice.

HJDDTGThis combined system brings oval screen printing and industrial-head digital garment printing into one production line.
  • Industrial head alternatives: Ricoh G5 / G6 or Starfire 1024MA; configure separately
  • Japan THK linear guide rail
  • Magnetic-levitation motor drive system
WhatsApp Enquiry
Oval Screen Printing Machine + Hybrid DTG Printer (Industrial Printhead)

Request Current Price

Current price, GST, freight and configuration are confirmed in writing.

Get a Detailed Quotation

Specifications, GST, freight, installation and warranty terms will be confirmed in writing.

Check Current Availability

Availability is verified before dispatch or import-on-order planning.

View Delivery Process

Dispatch follows payment, specification confirmation and logistics planning.

View Delivery Process

Installation Details

Free on-site installation for eligible machines above ₹1.5 lakh. Engineer travel and stay are customer-paid.

View Installation Details

1-Year Dedicated Warranty for Eligible Machines

Printheads and ink-related damage are excluded.

View Warranty Policy
Page viewed 0%
Buying readiness 0% Start exploring
Next: Check whether this machine suits your application

Oval Screen Printing Machine + Hybrid DTG Printer (Industrial Printhead): before you decide

Bring the garments you intend to sell, along with their fabric composition and colour. Ask to see how the quoted setup handles preparation, loading, printing and finishing on those garments.

Bring a job you actually plan to produce

Choose artwork and material that reflect your typical order. Ask which configuration produced the sample, how the operator handled the work and what checks were used to approve the result.

Keep the package details together

Save the product brochure, agreed configuration and quotation. Confirm what is supplied, what you need separately and which delivery, training and service arrangements apply to your order.

For background on the process, read Epson’s digital printing primer. This is general learning material. Use the documentation for your own machine and consumables when choosing settings.

Use the machine buying guide to organise your questions. For Oval Screen Printing Machine + Hybrid DTG Printer (Industrial Printhead), contact the team with your sample brief and installation location.

Oval Screen Printing Machine + Hybrid DTG Printer (Industrial Printhead): Overview and Applications

Oval Screen Printing Machine + Hybrid DTG Printer (Industrial Printhead) is one option to discuss for your dtg setup. Bring the garments you intend to sell, along with their fabric composition and colour. Ask to see how the quoted setup handles preparation, loading, printing and finishing on those garments.

Ask which production modes the quoted hybrid configuration supports and how the operator changes between them. Include changeover and loading in your sample demonstration.

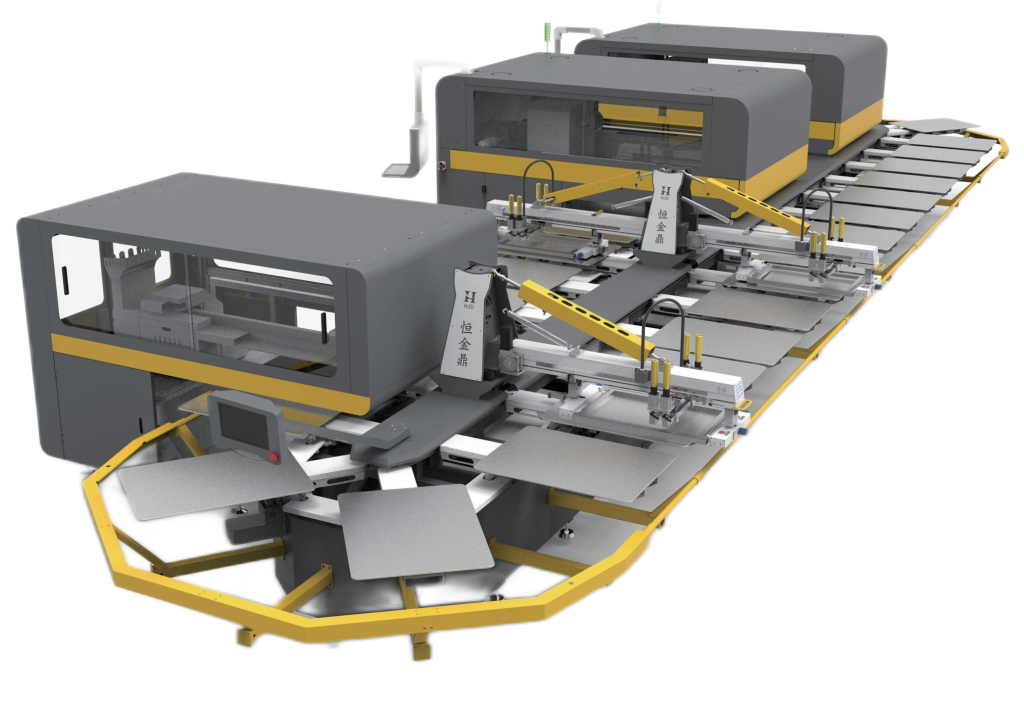

Oval Screen Printing Machine + Hybrid DTG Printer (Industrial Printhead) is documented in the HJD manufacturer brochure. This combined system brings oval screen printing and industrial-head digital garment printing into one production line. The brochure illustrates separate pretreatment-liquid, white-ink and colour-ink units on the oval machine. Its configurations must be selected together rather than treated as interchangeable standalone printers.

Use the specification table and matching brochure to check the configuration. If the listing covers alternative heads, widths or versions, mark the option you want on the quotation. Ask the team to clarify any ambiguous entry before treating it as a purchase specification.

For Oval Screen Printing Machine + Hybrid DTG Printer (Industrial Printhead), bring one representative job to the discussion. Note the artwork dimensions, material and quantities, and agree what a successful sample should demonstrate. Record the consumables and settings used for that sample so you have a useful reference later.

Compare the complete written package, including accessories, software where applicable, delivery and agreed installation or training. Measure the access route and the space needed around the equipment. Refer to the published warranty and support information alongside the terms in your order.

  • Cotton, linen and blends with cotton content ≥80%
Oval Screen Printing Machine + Hybrid DTG Printer (Industrial Printhead)

Technical Specifications

Other brochure specifications
Product modelHJD-DP01-1
SystemOval screen printing machine with pretreatment, white-ink and colour-ink digital units
FabricCotton, linen and blends with cotton content ≥80%
Optimum spray height3 mm
Printhead-to-medium height1.5–25 mm, adjustable
Air supply0.6 MPa; 50 L/min; dry, oil-free and moisture-free
Working temperature20–28 °C
Working humidity45–65%
Digital-unit dimensions3300 × 2150 × 2100 mm
Screen-printing baseHJD-A1; configuration-dependent platen and station counts
Industrial head alternativesRicoh G5 / G6 or Starfire 1024MA; configure separately
Ricoh colour configurationsCMYK; CMYKOB; CMYKORGB
Ricoh head countsCMYK: 10/12/16; CMYKOB: 15; CMYKORGB: 16/24 (source table mappings require confirmation)
Starfire configurations5 or 6 white-ink heads, or 5 coating-ink heads
Maximum print areasRicoh: 700 × 820 mm; Starfire white: 700 × 800 mm; coating: 700 × 750 mm; station clearance applies
Control boardBYHX
Power as printedSingle-phase 220 V, 6 kW / 28 A; Ricoh variants 6.5 kW; Starfire 5.5 kW — confirm configured load
Machine footprint3000 × 2200 × 2200 mm
Net / packed weight1200 / 1350 kg
Screen-base supplyThree-phase 380 V, 50 Hz (HJD-A1 base)
Screen-base air pressure0.6–0.8 MPa; dried and filtered

Brochure values should be reconfirmed in the final quotation and specification sheet before purchase.

Features and Components

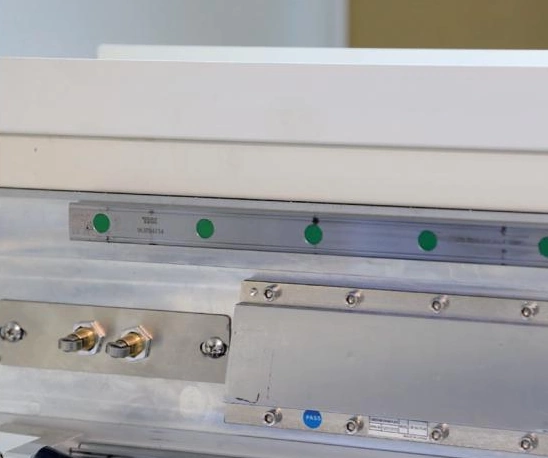

  • Japan THK linear guide rail

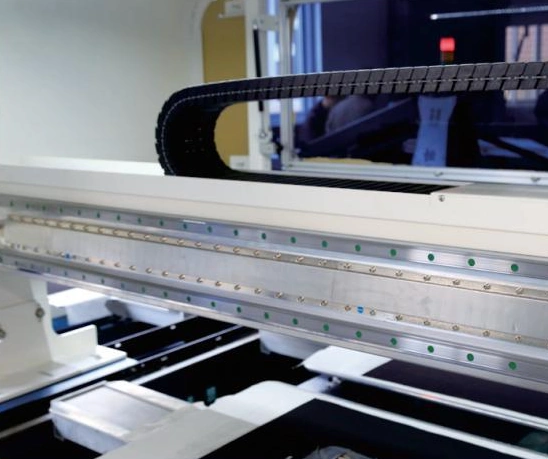

  • Magnetic-levitation motor drive system
  • Separate pretreatment, white and colour stages

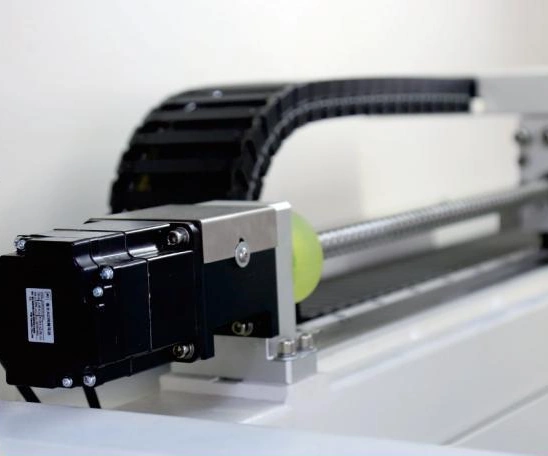

  • The component photograph is captioned “Fujifilm servo motor”; the specification table instead says Japan Fuji servo motor. Supplier confirmation is needed before ordering that component.

Working Process

  1. Lay the fabric
  2. Direct-spray pretreatment liquid
  3. Dry, then press the fabric surface
  4. Direct-spray white ink
  5. Direct-spray colour ink
  6. Dry and fix
  7. Dry and fix again
  8. Collect the finished fabric

Configuration and Source Notes

  • Component brand conflict: photograph says Fujifilm; table says Fuji.
  • Industrial-head configuration and speed columns require supplier confirmation; original table retained in product PDF.
  • HJD-A1 is the screen-printing base, not another complete hybrid system.

Package

What is Included and What to Plan Separately

Package eligibility will be confirmed in your quotation. Machines priced above ₹1.5 lakh receive the ProlificGeeks installation and support package.

Included with eligible machine

  • Free on-site installation
  • Operator training during installation
  • Machine operation demonstration
  • Recorded installation/execution demonstration

Installation and support package

  • Setup guidance
  • Instant support during supported service hours
  • Three on-site service visits in the first year
  • One-year dedicated warranty

Optional/configuration-dependent

  • Exact starter consumable quantity
  • Optional accessories
  • Additional finishing equipment
  • Compatible consumable and accessory options

Required separately

  • Engineer onward/return travel
  • Engineer accommodation and local transport
  • Unsupported consumables or damage risk
  • Printheads and ink-related damage are warranty exclusions

Delivery and setup

Delivery, Installation and Training

Industrial machine ordering should be confirmed through a formal quotation, specification review and site-readiness check.

  1. Confirm configuration and requirements.
  2. Verify availability or import timeline.
  3. Issue formal quotation and collect applicable advance/payment.
  4. Arrange dispatch and site-readiness confirmation.
  5. Engineer installation and operator training.
  6. Post-installation support and scheduled service.

If the selected machine is in stock, dispatch is arranged promptly after payment, specification confirmation and logistics planning.

If the machine must be imported, the estimated supply period is approximately 45 days, subject to supplier readiness, freight, customs and logistics.

Import-on-order machines generally require a 20–50% advance, with the exact amount stated in the quotation.

Training is conducted during installation for approximately 4–5 operators. Engineer travel, hotel and local transport are customer-paid.

Browse Catalogue

Workspace planning

Plan Your Machine Setup

Final room dimensions depend on the selected configuration and site measurements. Use this checklist before requesting a layout review.

Room length and widthCeiling height and door widthFloor and lift availabilityElectrical supply and stabilizer/UPSVentilation or exhaust requirementComputer workstationMedia and consumable storageOperator clearance and input/output area

Warranty and support

Eligible machines receive a one-year dedicated warranty, support access, spare-parts support subject to availability and three on-site service visits in the first year.

  • Printheads excluded
  • Ink-related damage excluded
  • Unsupported consumables may affect warranty eligibility
Read Full Warranty Policy

Consumables required

  • Confirm the consumables and operating supplies for this exact configuration before ordering.

Machine FAQs

Where can I check the original specifications?

Use the product-specific Download Brochure link on this page and confirm the selected configuration in your quotation.

Are the brochure output figures guaranteed?

No. Output depends on the selected configuration, print mode, media and operating conditions. Confirm these requirements before ordering.
